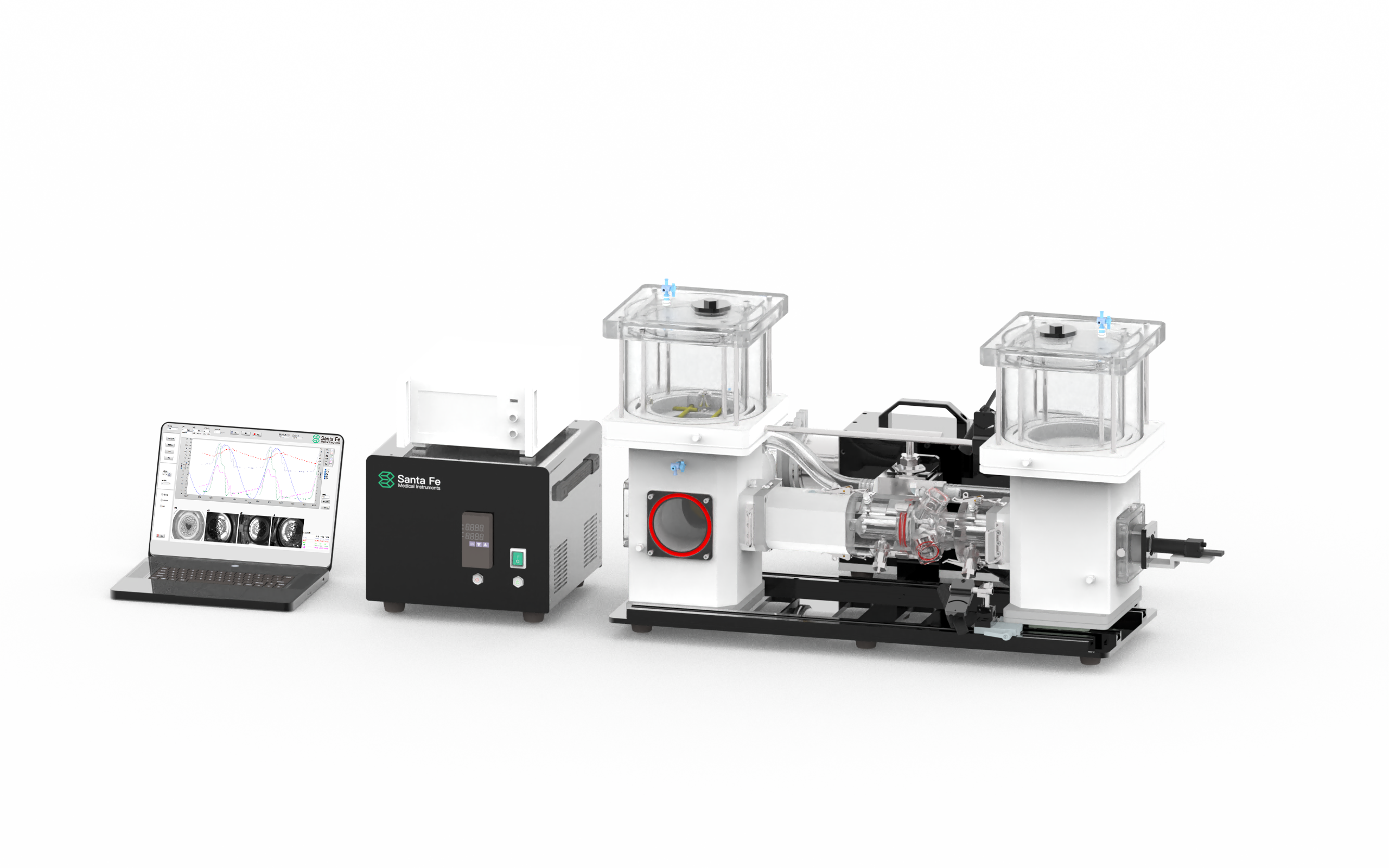

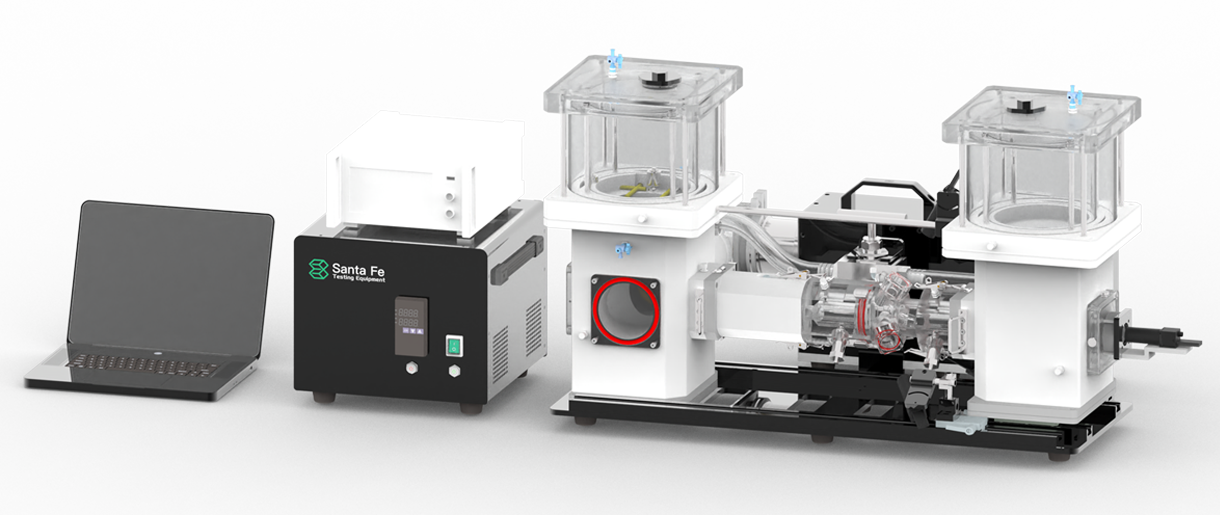

Ginkgo PFT Max Heart Valve Pulsatile Flow Tester

The Ginkgo PFT Max, a highly advanced heart valve pulsatile flow tester, complies with ISO 5840:2021 series standards to simulate the pulsatile circulation mechanism of the heart. It is usedfor evaluating pulsatile flow characteristics of transcatheter and surgical heart valve implants (aortic, mitral, pulmonary and tricuspid valves). Using Ginkgo PFT TEST software, it simulates stroke volumes within a 30%–50% systolic range. Combined with VIA adjustment, biomimetic flow path, compliance chamber,and throttle control, it replicates cardiac flow under various conditions—delivering real-time pressure/flow data and full test parameters. Four high-speed cameras enable multi-angle observation of leaflet motion (synchrony, flutter, and fine movements). Ginkgo VGOA TEST software quantifies full-cycle GOA and tri-leaflet coaptation consistency.

▌ KEY SPECIFICATIONS

▌ BENEFITS & FEATURES

1、Highly bionic mechanism simulates left and right hearts; supports four-valve testing.

2、Intelligent real-time data analysis; four high-speed cameras capture multi-angle views with synchronized display.

3、Innovative quick-change fixture design enables easy valve replacement and minimal test fluid loss.

4、Customizable systolic drive waveforms; high-precision control of pulsatile flow delivery.

5、Real-time synchronization of pressure/flow with imaging; four-angle simultaneous display of leaflet dynamics.

6、Quantitative analysis of GOA and tri-leaflet coaptation consistency over full valve cycle.
