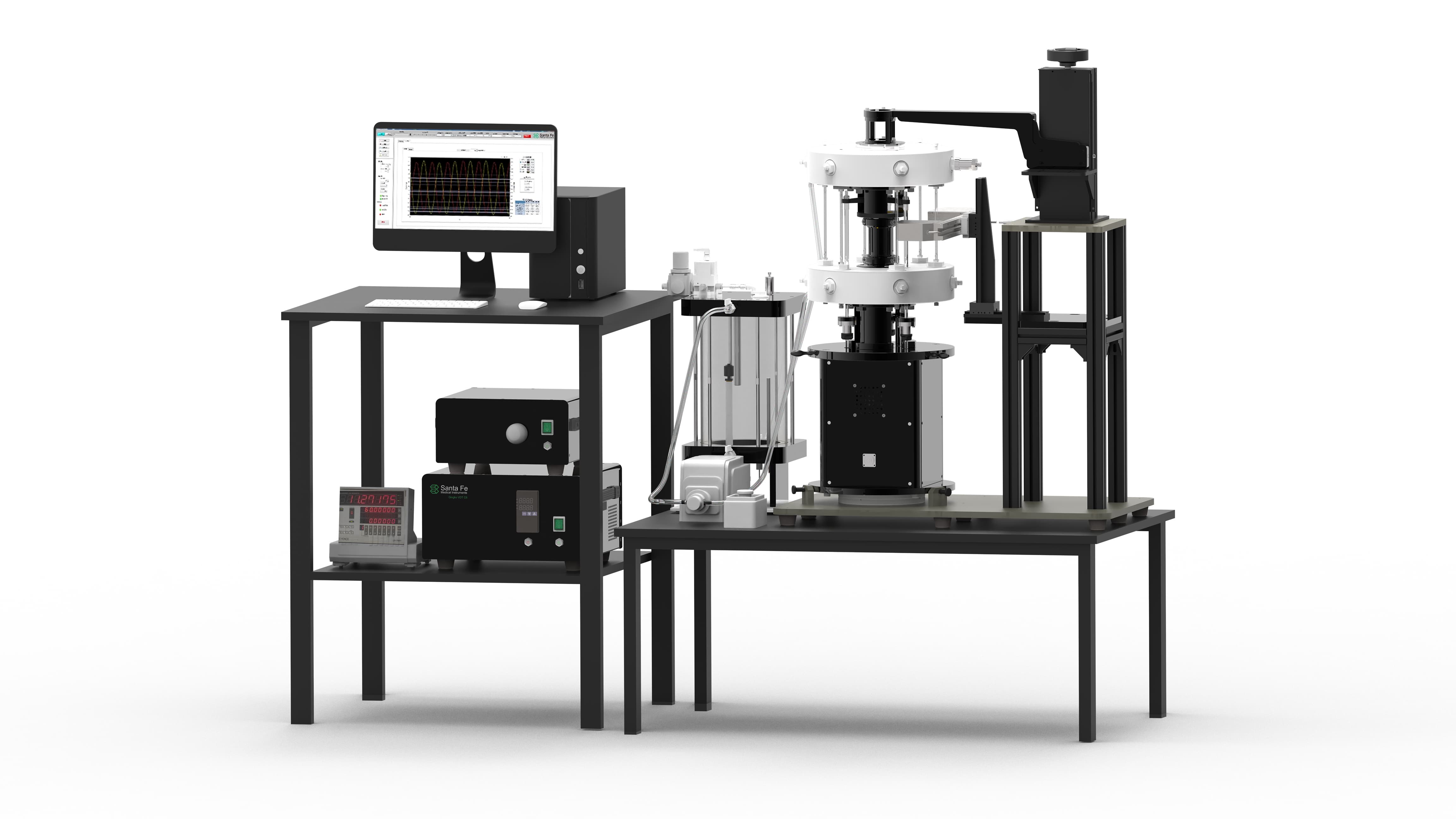

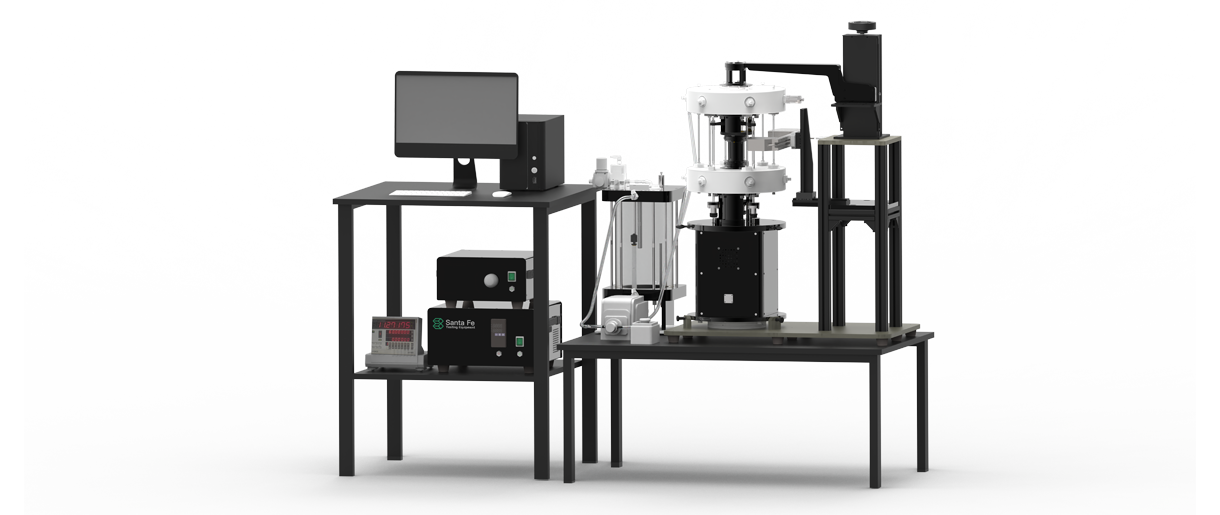

Gingko RPDT C6.0 Vascular Stent Radial Pulsatile Durability Tester

The Gingko RPDT C6.0, a Radial Pulsatile Accelerated Durability Tester, is designed to perform accelerated pulsatile durability testing on vascular implants such as stents or valve frames, in accordance with relevant requirements of ISO 25539 and ASTM F2477-19.The system includes six test stations, utilizing a closed-loop feedback control system. Its innovative design employs a "single motor to synchronously drive dual diaphragms" that push fluid at high frequency from both sides of the mock vessel. This action simulates cardiac pulsations and the resulting cyclic radial loading on the samples under test.The dynamic outer diameter of a selected mock vessel is measured in real-time by an optical laser micrometer. The tester supports various stent types and features an easy-to-adjust mechanism to accommodate mock vessels of different lengths. The entire process (from control and acquisition to computation, analysis, and recording) is managed by our proprietary, self-developed Gingko RPDT TEST software.

▌ BENEFITS & FEATURES

▌ KEY SPECIFICATIONS

1、The innovative "single motor to synchronously drive dual diaphragms" technology ensures bidirectional synchronization and high fluid displacement capacity.

2、The vertical orientation ensures exceptional stability during high-frequency operation and facilitates easy access for optical diameter measurements on the mock vessel.

3、The vertical structure and diaphragm-driven fluid system allow for easy de-aeration and enable bubble-free operation.

4、Gingko RPDT TEST software features an intuitive workflow that guides the user through the entire testing process, ensuring compliance with standard requirements.
